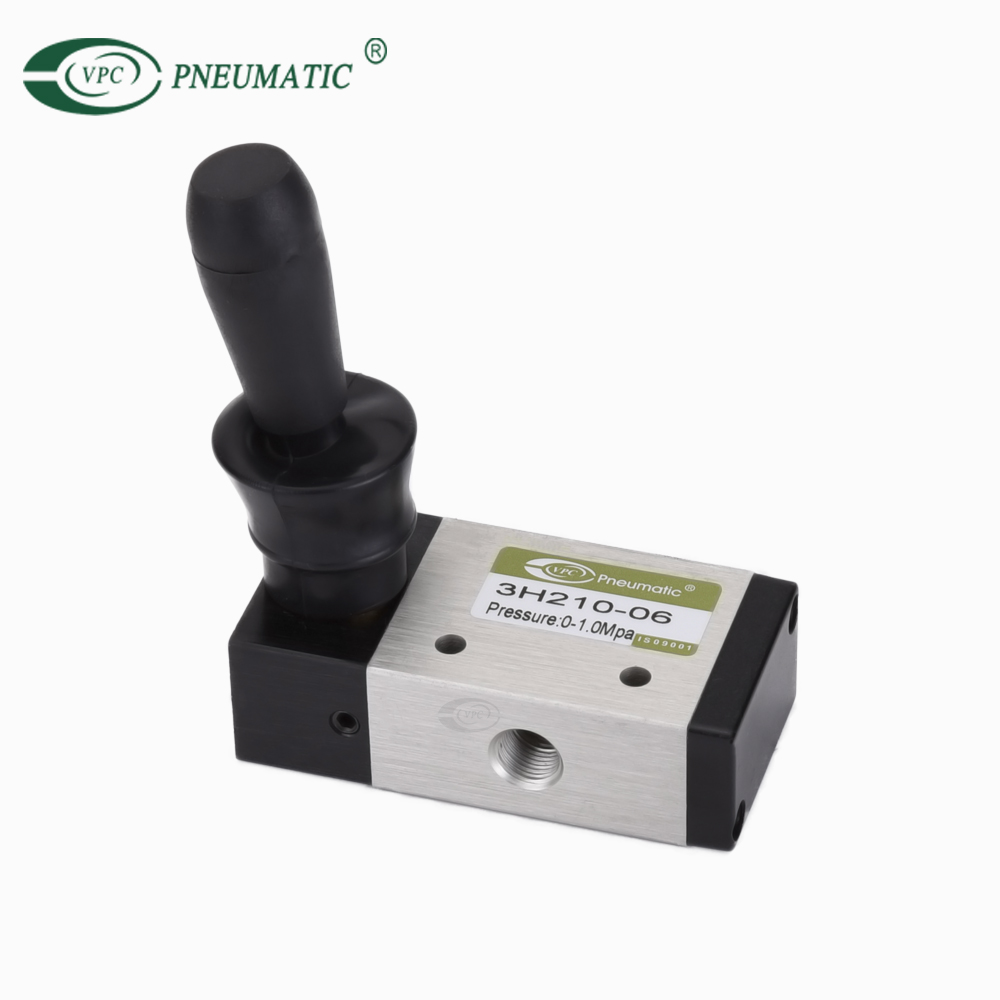

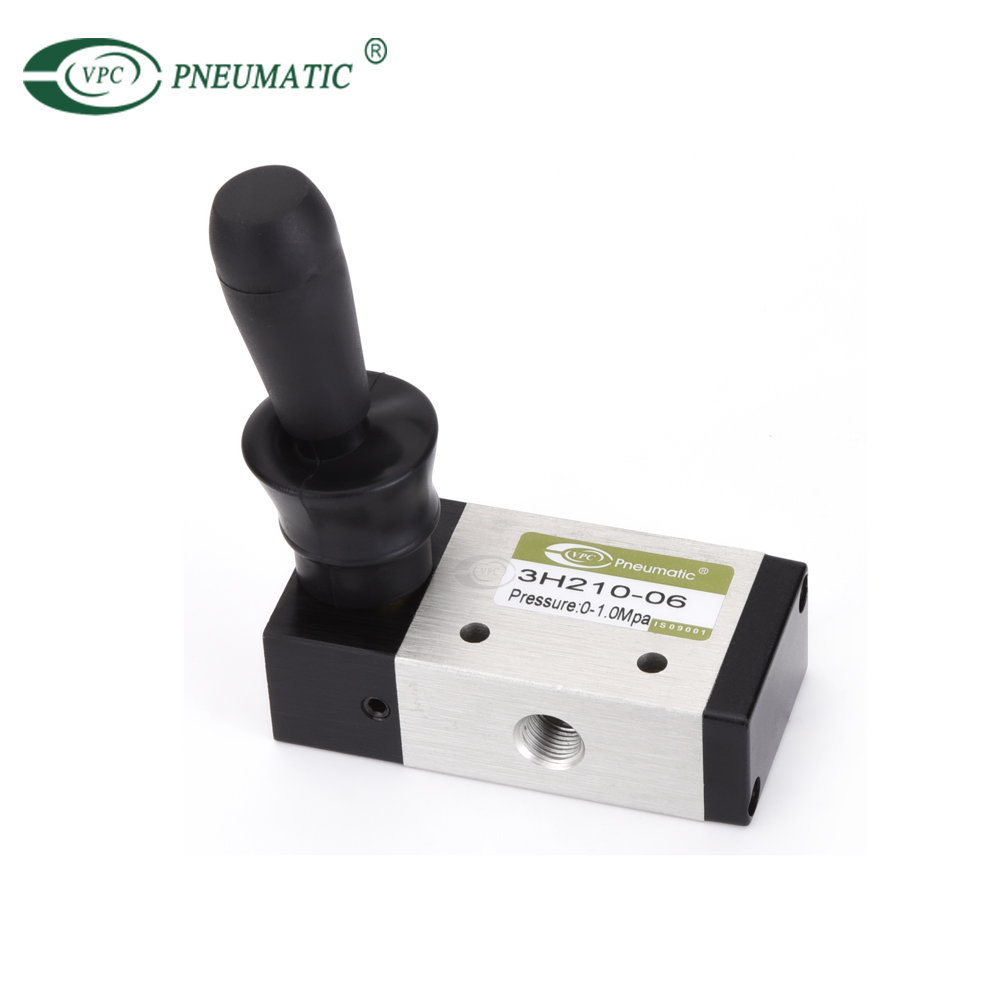

3H210-06
VPC
8481802190
| توافر الحالة: | |
|---|---|
وصف المنتج
| وسيط العمل | هواء نظيف |
| ضغط العمل | 0-1.0MPA |
| أقصى ضغط | 1.5mpa |
| درجة حرارة العمل | -10-60 ℃ |
| مادة الجسم | الألومنيوم |
| تشحيم | رقم |
| مودل | حجم المفصل | مساحة المقطع |
| 3H110-06 | G1/8 " | 12mm² (CV = 0.67) |
| 3H210-06 | G1/8 " | 14mm² (CV = 0.78) |
| 3H210-08 | G1/4 " | 16mm² (CV = 0.89) |
| 3H310-08 | G1/4 " | 25mm² (CV = 1.39) |
| 3H310-10 | G3/8 " | 30mm² (CV = 1.67) |
| 3H410-10 | G3/8 " | 40mm² (CV = 2.23) |
| 3H410-15 | G1/2 " | 50mm² (CV = 2.79) |
| 4H110-06 | G1/8 " | 12mm² (CV = 0.67) |
| 4H110-08 | G1/8 " | 14mm² (CV = 0.78) |
| 4H210-06 | G1/4 " | 16mm² (CV = 0.89) |
| 4H210-08 | G1/4 " | 25mm² (CV = 1.39) |
| 4H310-08 | G3/8 " | 30mm² (CV = 1.67) |
| 4H310-10 | G3/8 " | 40mm² (CV = 2.23) |
| 4H410-15 | G1/2 " | 50mm² (CV = 2.79) |
| 4H130C-06 | G1/8 " | 9mm² (CV = 0.50) |
| 4H230C-08 | G1/4 " | 12mm² (CV = 0.67) |
| 4H330C-10 | G3/8 " | 18mm² (CV = 1.00) |
| 4H430C-15 | G1/2 " | 30mm² (CV = 1.67) |
