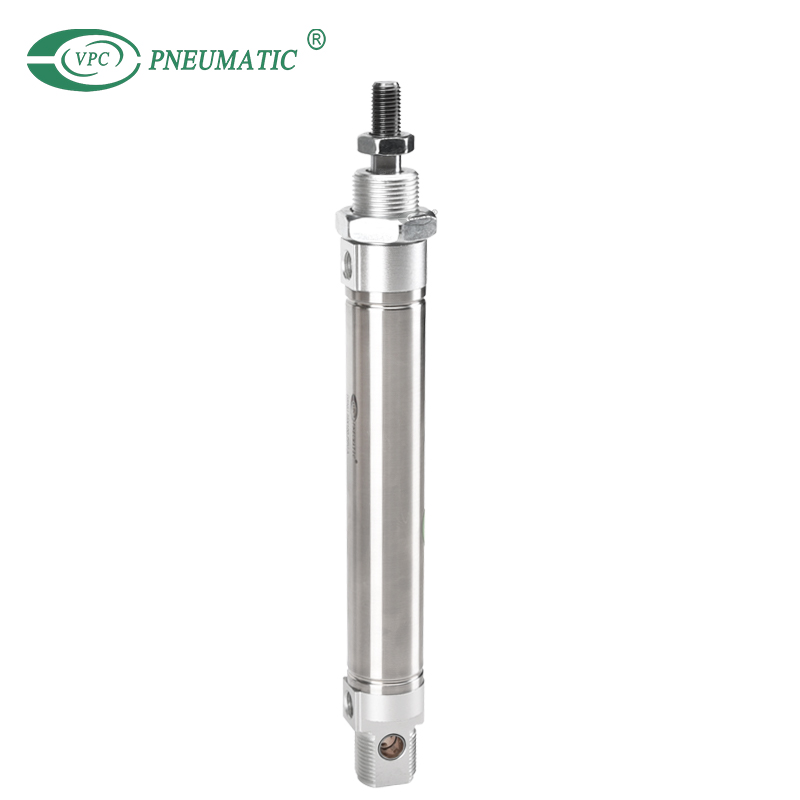

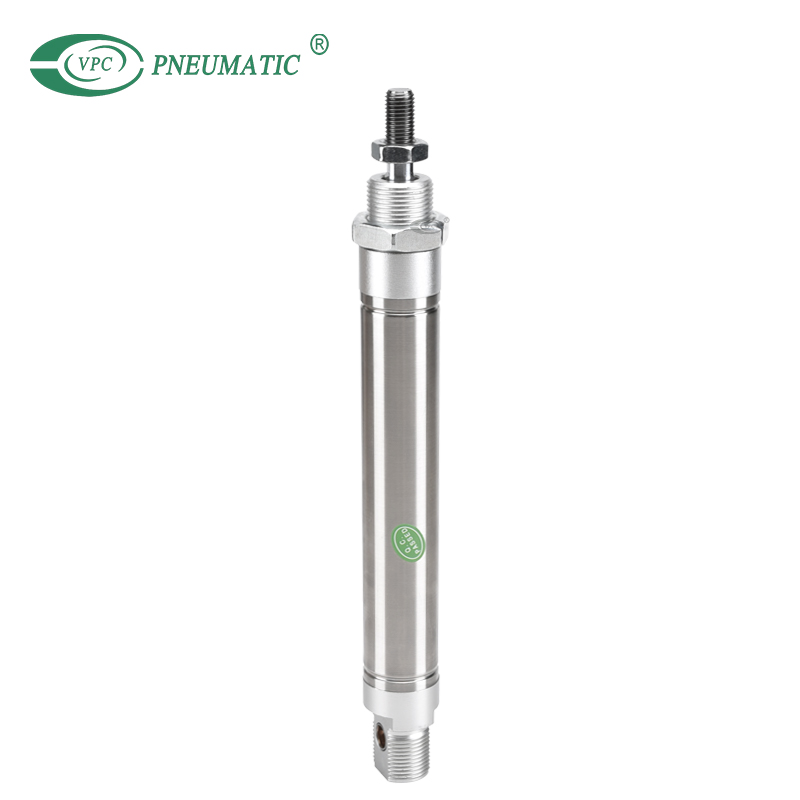

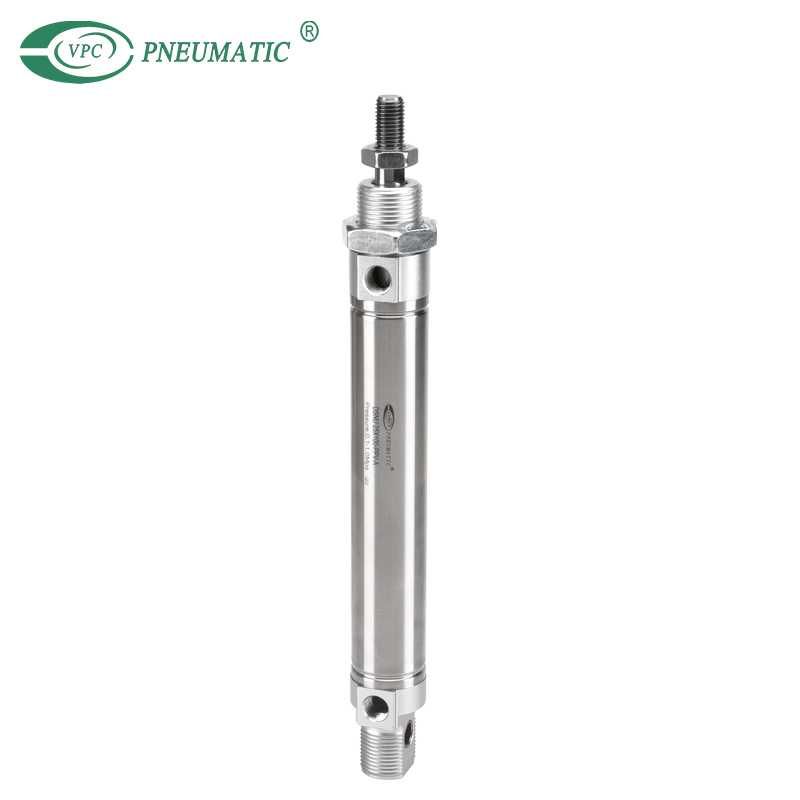

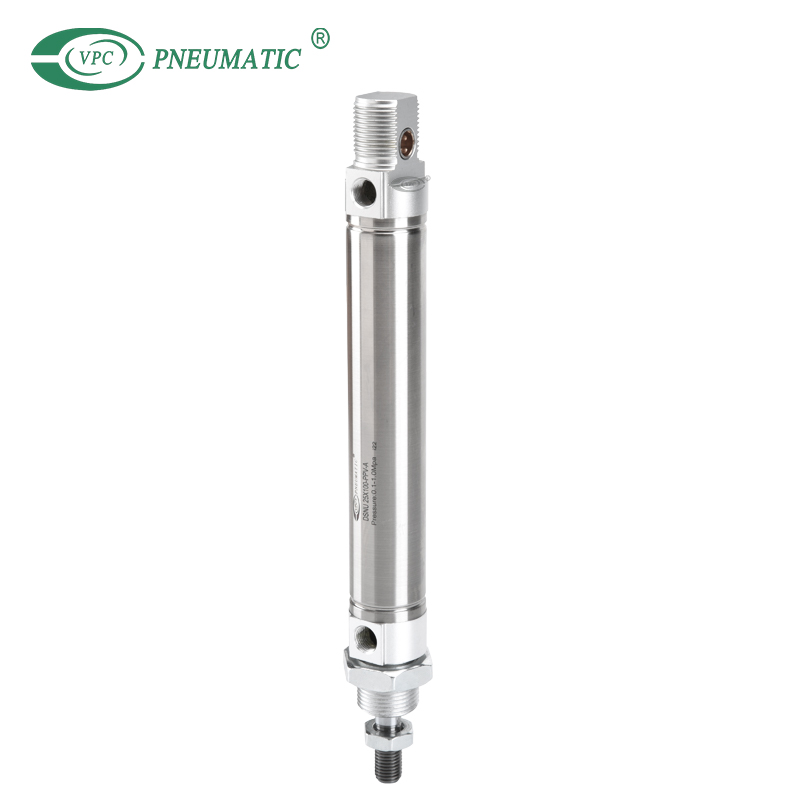

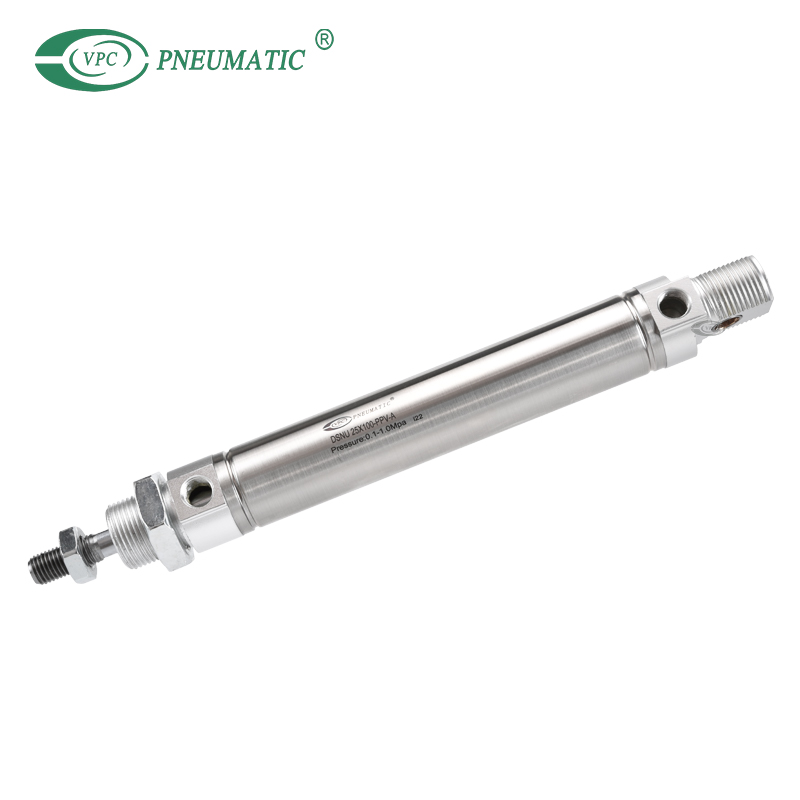

Product Description
1. The excellent running performance and long service life.
2. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes.
3. Piston rod with internal or external thread.
4. Magnetic piston for position sensing.
5. A wide range of variants for customized applications, for example, smooth running, corrosion, or chemical resistance are required.
* Bore diameters from 8 to 25 mm are in conformance with ISO 6432.

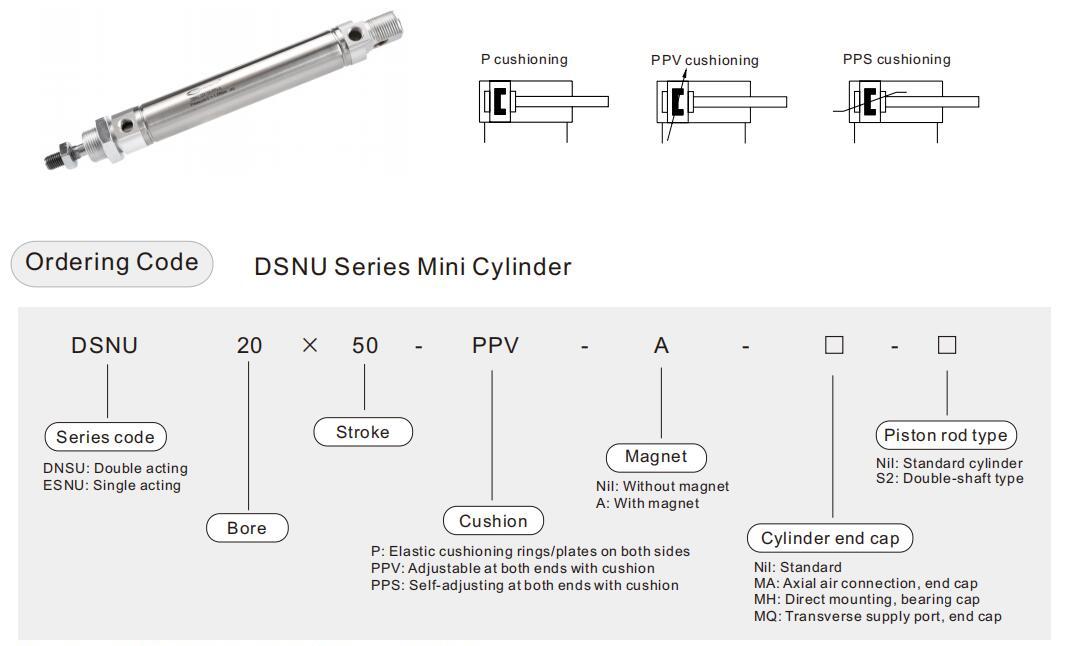

Product Specifications
| Bore(mm) | 8 | 10 | 12 | 16 | 20 | |
| Acting type | Double acting, Single acting | |||||
| Working medium | Clean air(40um Filteration) | |||||
| Working pressure | 0.15 to 1.0Mpa | 0.1-1.0Mpa | ||||
| Working temperature | -20 to 80℃ | |||||
| Lubrication | No required | |||||
| Speed range | - | 10 to 100mm/s | ||||
| Cushion type | DSNU-□-P | Elastic cushion rings | ||||
| DSNU-□-PPV | - | Adjustable cushion | ||||
| DSNU-□-PPS | － | Self-adjustable cushion | ||||
| Cushion stroke | DSNU-□-PPV | － | 9mm | 12mm | 15mm | |
| DSNU-□-PPS | - | 12mm | 15mm | |||
| Port size | M5 | M5 | M5 | M5 | G1/8 | |
| Piston rod thread | M4 | M4 | M6 | M6 | M8 | |
| Mounting type | Direct mounting (variant MH only) | |||||
| With accessories | ||||||
| Bore(mm) | 25 | 32 | 40 | 50 | 63 | |
| Acting type | Double acting, Single acting | |||||
| Working medium | Clean air(40um Filteration) | |||||
| Working pressure | 0.1-1.0Mpa | |||||
| Working temperature | -20 to 80℃ | |||||
| Lubrication | No required | |||||
| Speed range | 10 to 100mm/s | 8 to 100mm/s | 5 to 100mm/s | |||
| Cushion type | DSNU-□-P | Elastic cushion rings | ||||
| DSNU-□-PPV | Adjustable cushion | |||||
| DSNU-□-PPS | Self-adjustable cushion | |||||
| Cushion stroke | DSNU-□-PPV | 17mm | 14mm | 18mm | 20mm | 21mm |
| DSNU-□-PPS | 17mm | 14mm | 18mm | 20mm | 21mm | |
| Port size | G1/8 | G1/8 | G1/4 | G1/4 | G3/8 | |
| Piston rod thread | M10×1.25 | M10×1.25 | M12×1.25 | M16×1.5 | M16×1.5 | |
| Mounting type | Direct mounting (variant MH only) | |||||
| With accessories | ||||||

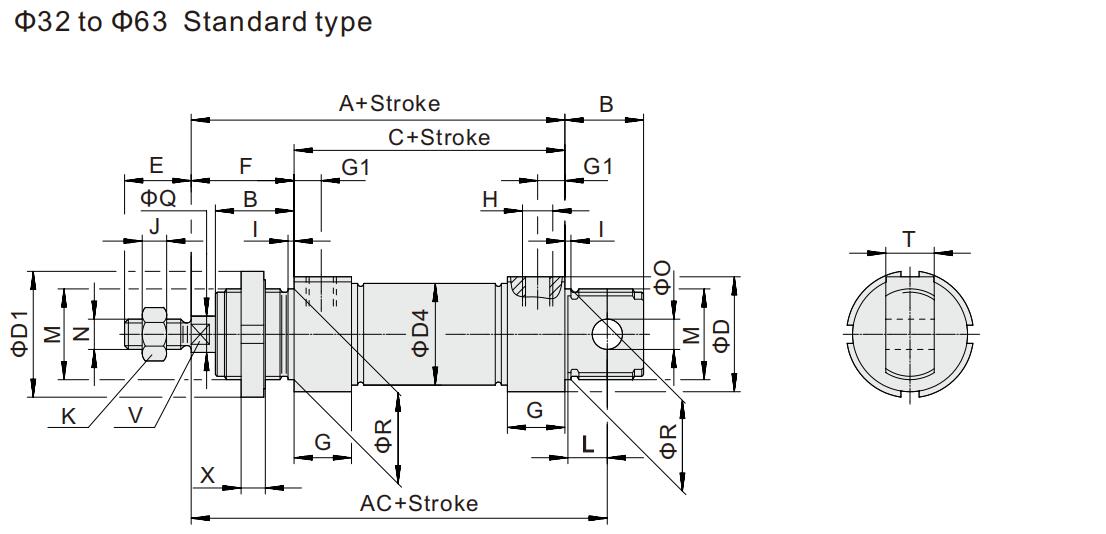

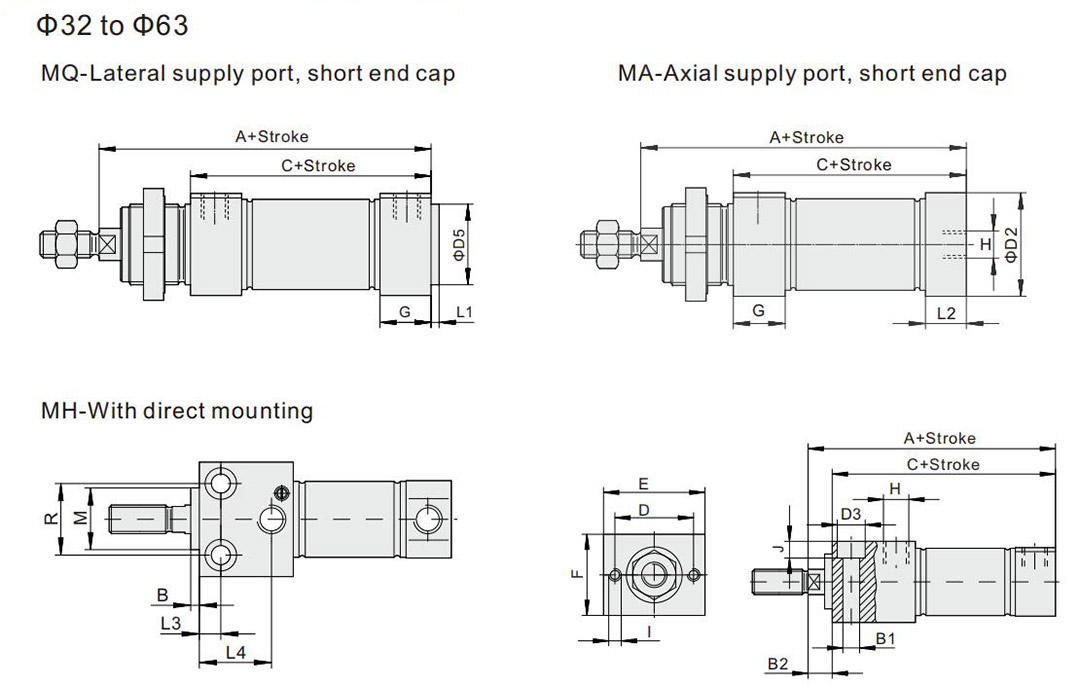

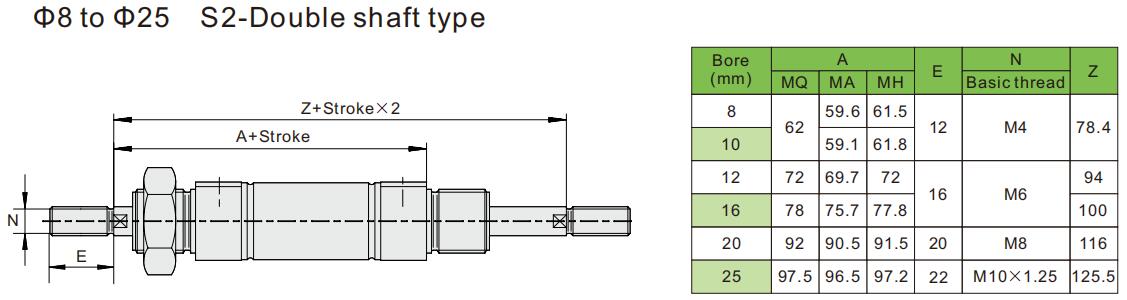

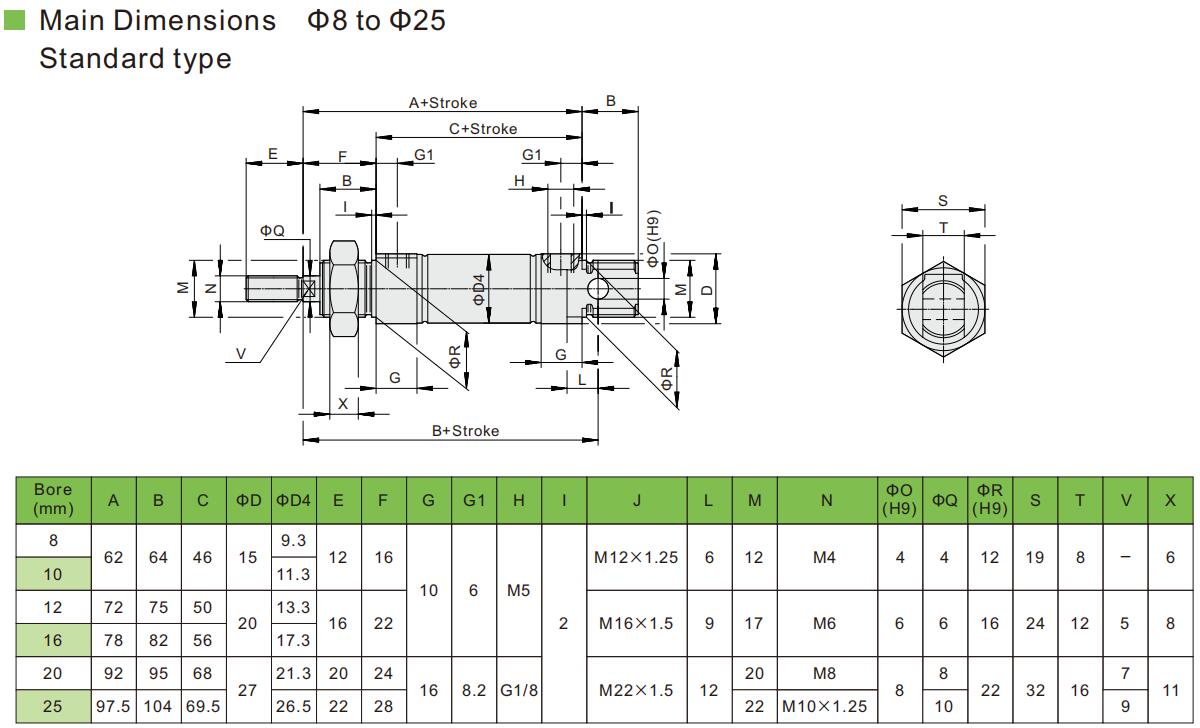

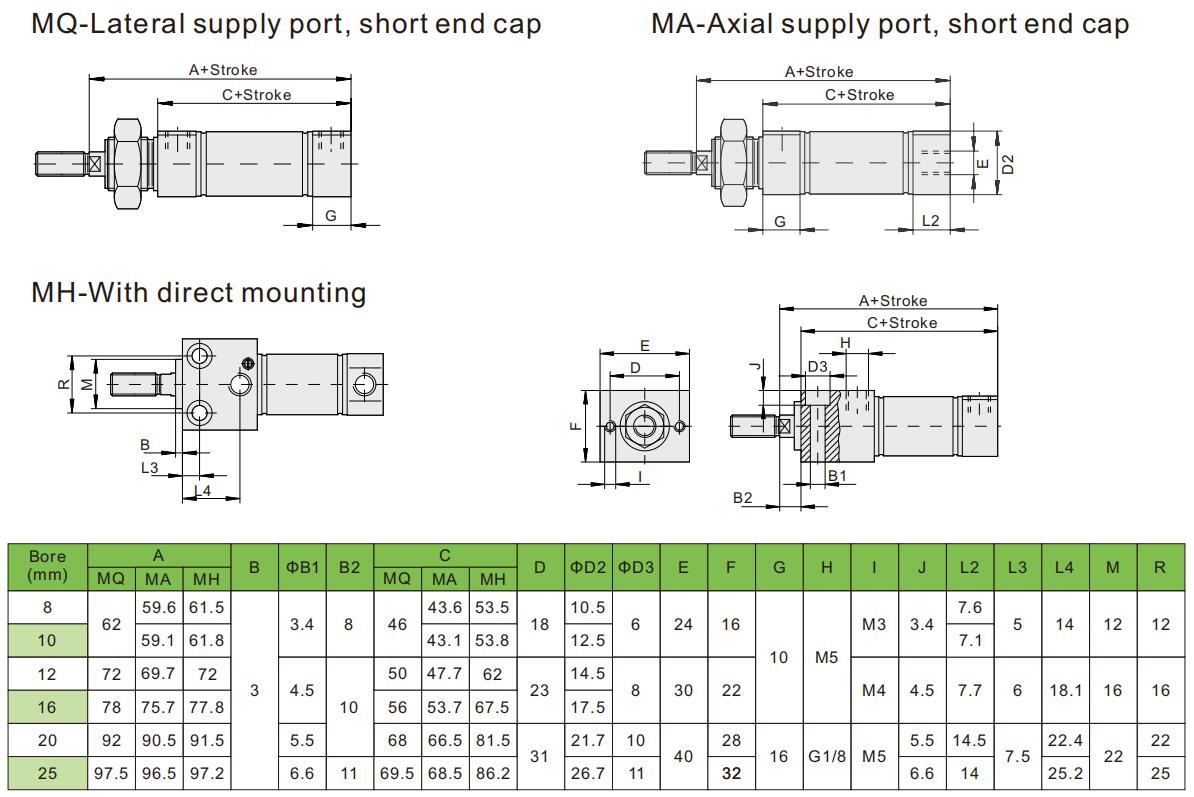

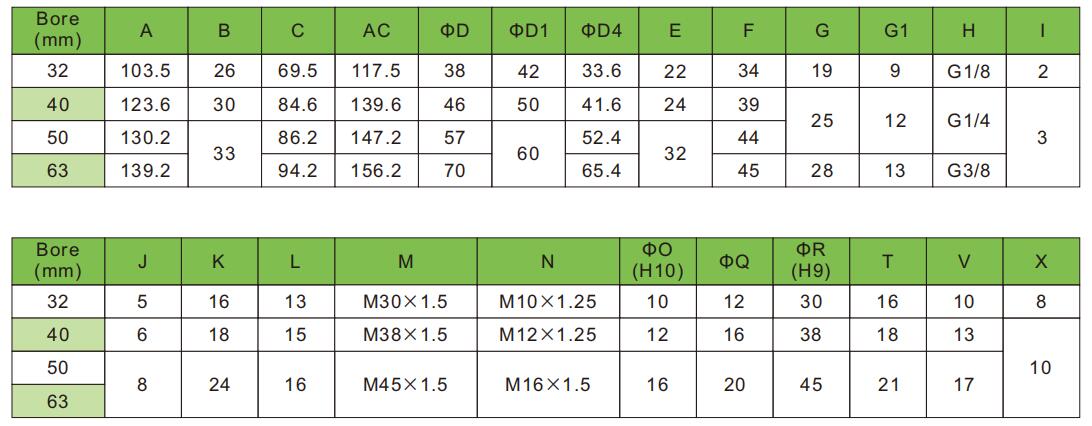

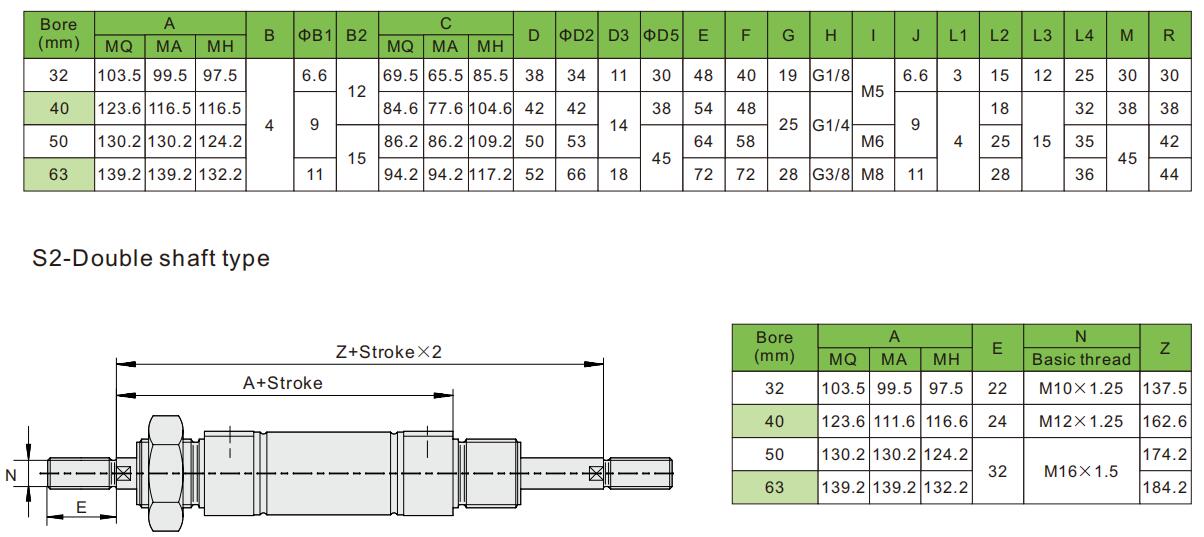

الأبعاد الرئيسية
